DL24-HDLED
Reg. Price:
$452.00
Sale Price:
$347.20
Save:
$104.80

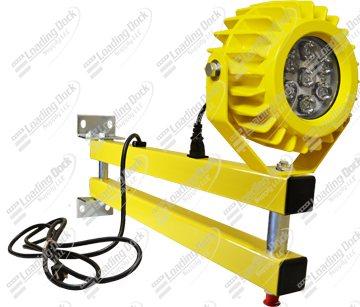

24" Double Strut Dock Light
Heavy Duty Cast Aluminum Light Head housing
UL, cUL, CE certified and RoHs compliant

Details:

DL24-HDLED Features:

Free Shipping within the contiguous United States

Head:

Up to 97% Less Energy Because of Tri Lite’s advanced applications of LED technology, the HD Series LED loading dock lights require far less energy than traditional fixtures while accomplishing the same lighting tasks. Units are expected to deliver more than 90% lumen maintenance for over 10 years in typical applications and environments. That’s usually more than a 60,000 hour life expectancy.

  • Virtually indestructible, our heavy-duty LED lamp head is designed for the most demanding environments including wet and damp locations, wash-down, and extreme temperature
  • Cool white light, designed to minimize color shift over time
  • Light intensity comparable to 300 watt incandescent bulb while using less than 20 watts
  • Rugged cast aluminum housing, designed for maximum heat dissipation
  • Completely sealed polycarbonate lens and enclosure, rated “Wet Locations” IP66, NEMA 4
  • Powered by the latest Philips Lumileds LED’s, global leaders in LED technology
  • Dedicated constant current driver, 100,000hrs @25°C ambient, IP66 rated
  • Advanced thermal management techniques and components
  • Operating temperature 0°F – 130°F
  • Voltage Input: 100-240 VAC, Alternate 10-30 VDC available
  • DC Output – 700 ma. (constant current)
  • 19 total Watts
  • UL, cUL, CE listed and RoHs compliant
  • 5 Year Warranty

Dock Light Arm:

An industry standard the dual strut arm has the highest strength of all the arms, offering 300° of horizontal movement at the joint. Available in 40”, 60”, & 90” lengths.

24" Arm - Single Strut Drawing

  • Chip resistant powder coat finish
  • 1-1/2” square, 14 gauge, steel tubing
  • 8’ long, 300v SJTW conductor cord and NEMA 5-15 grounded plug
  • (2) 3-1/4” x 1-3/4” x  3/16” mounting plates allow arm to be mounted with four 3/8” anchor bolts
  • ROHS Compliant
Arm Plug NEMA 5-15P
Arm Socket IEC C-14
Light Head Plug IEC C-13
AC Voltage 115V
